CW-20D

Improve your packaging process and boost productivity with our leading-edge solutions

Products

CW-20D

Download Brochure Download Icon
The Checkweigher (CW-20D) is built for exceptional reliability and precision, expertly designed to h...

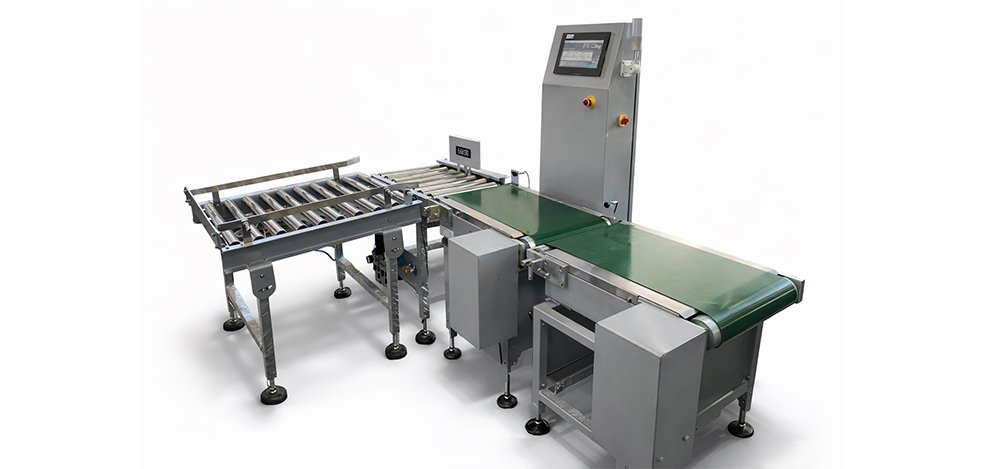

CW-20D

The Checkweigher (CW-20D) is built for exceptional reliability and precision, expertly designed to handle heavy loads effortlessly. With advanced technology, it ensures accurate weight measurements and consistent performance, making it ideal for industries that demand high capacity weighing solutions. The CW-20D enhances operational efficiency while upholding strict quality control standards, offering a durable, robust solution for reliable heavy load weighing in demanding situations.

Characteristics

  • Manual or automatic zero adjustment
  • Loadcell Calibration through HMI
  • PLC-based control for all machine operations
  • Integrated light and sound alerts for underweight and overweight products
  • Profinet interface for real-time weight data transmission
  • Recipe creation from HMI
  • Easy parameters settings through 7’ Color HMI.
  • Easy troubleshooting through HMI (alarms & warning massage)
  • 3-level password protection.
  • Electrical ratings 200 to 240 VAC, single-phase, 50 / 60 Hz

Technical details

Technical details Specification
Weigh Range 1 - 30 kg
Accuracy ± 20 g
Throughput, max. 24 pcs/min
Weighing Conveyor Length (mm) 600-650mm
Weighing Conveyor Width (B-B) (mm) 500mm
A 1412 mm
B 560 mm
A+B 1965 mm
Electrical Cabinet 1573 mm
Motor power 200 W
Ingress protection IP 55
Humidity 10 - 80 %
Max. Product Length 480 mm
